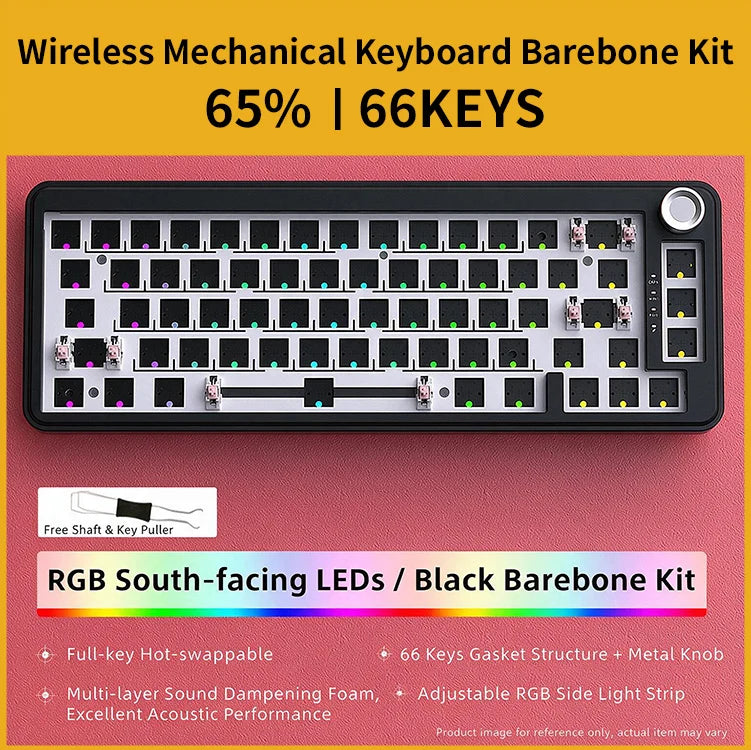

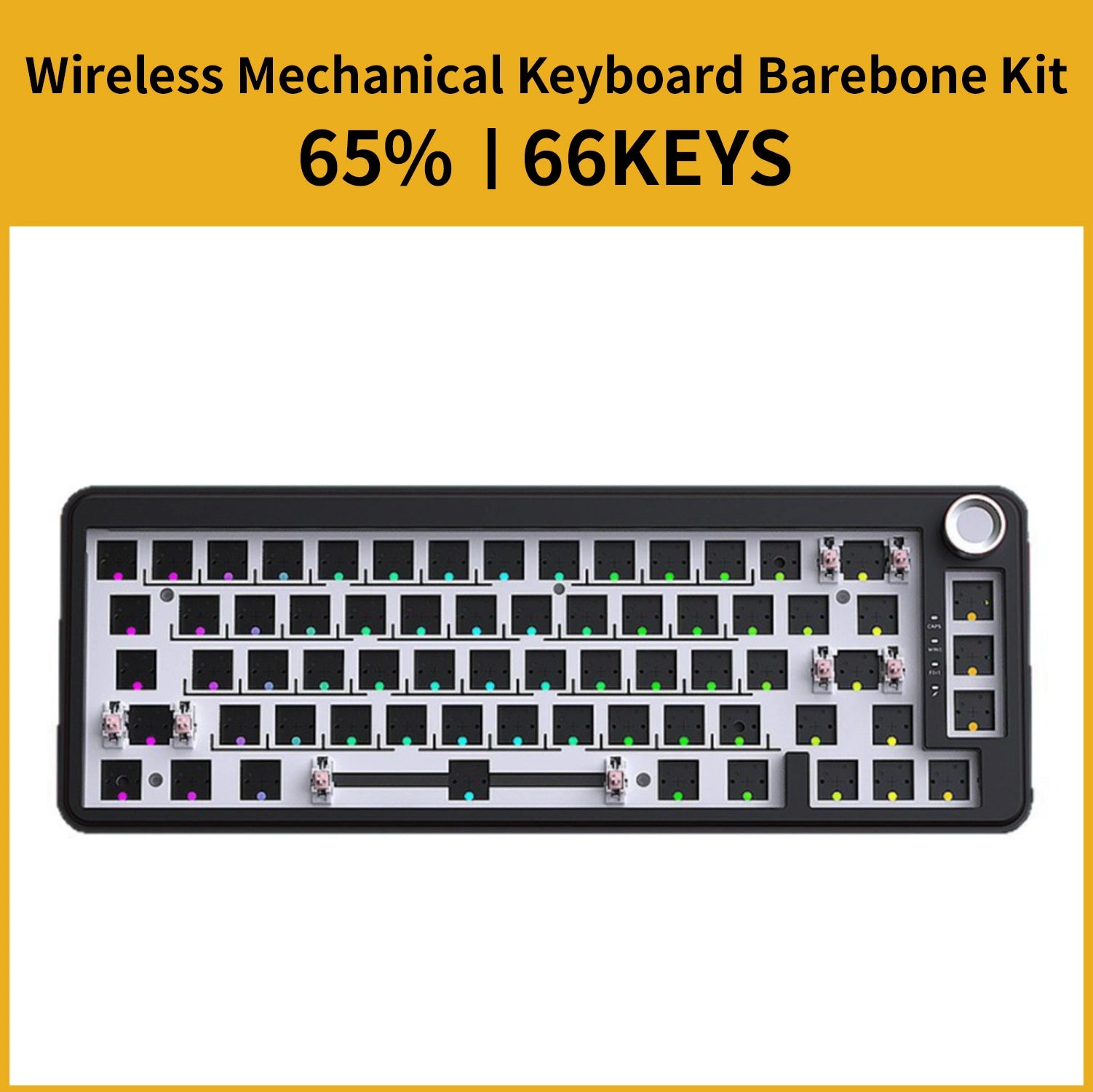

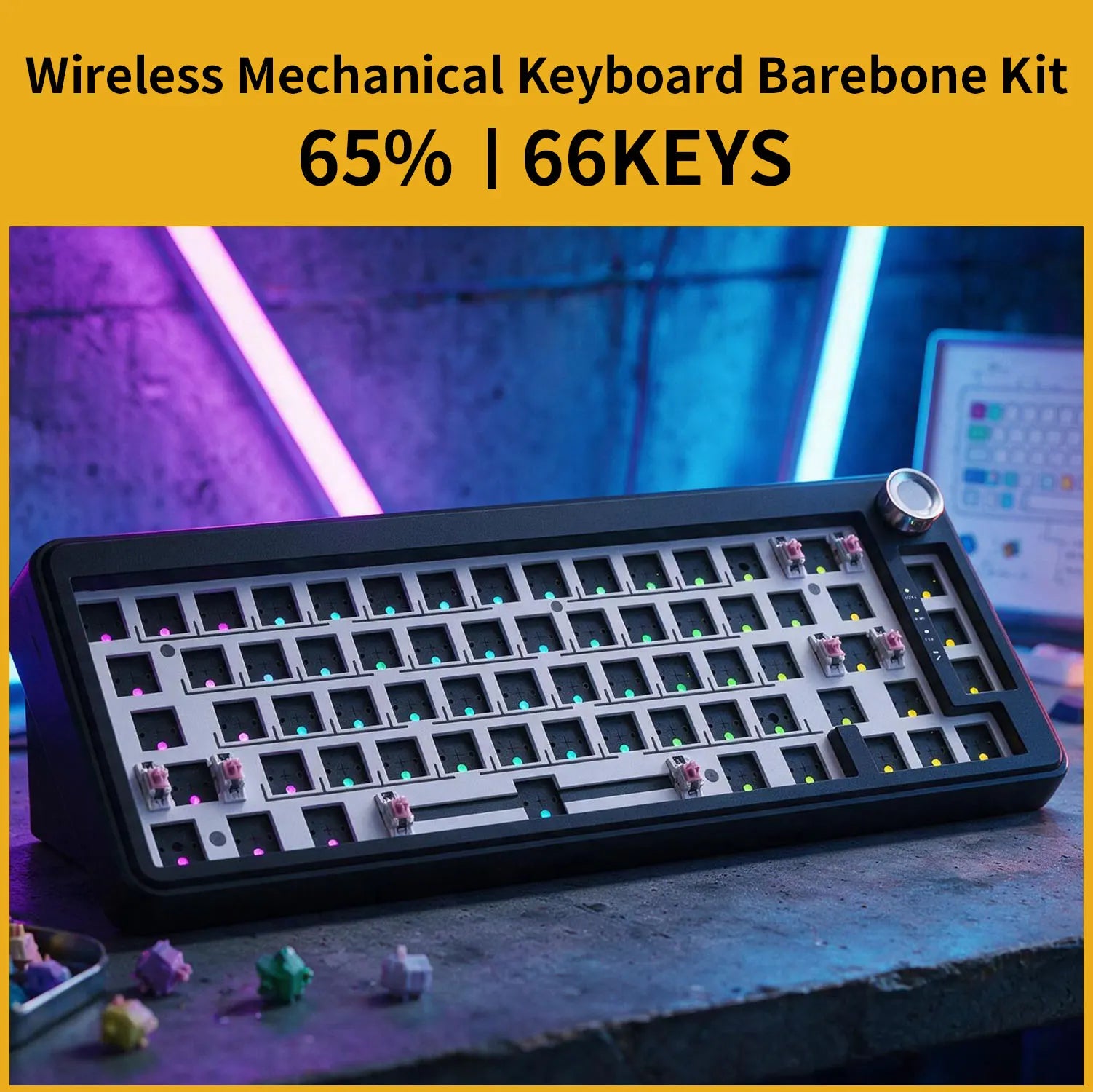

Compact & Exquisite · 66-Key Multimedia Knob Layout
Measuring just 333×122×29mm, this compact keyboard combines beauty and practicality — the perfect centerpiece for any desktop setup.
Gasket Structure · Exceptional Acoustic Performance
Built on a Gasket floating plate structure with four layers of sound-dampening foam — POR sandwich foam, IXPE switch underpad, and bottom foam — to deliver a soft, satisfying thock with every keystroke.
- PC Sandwich Plate — softer and more flexible for a cushioned typing feel
- GASKET Gaskets — effectively isolate vibration between plate and case
- Satellite Switch Stabilizers — factory pre-lubed, precision structure, smooth operation, excellent tactile sound
- Full-key Hot-swap PCB — compatible with most switch types
RGB South-Facing LEDs · Vivid Lighting
South-facing RGB LEDs per key with intuitive shortcuts: Fn + Space to toggle backlight, Fn + \ to cycle light effects, Fn + ]} to change backlight color. Personalize your lighting experience exactly the way you want it.
3750mAh Battery · Type Anywhere, Anytime
The built-in 3750mAh lithium battery supports use while charging. Charge at DC 5V/1A via a computer USB port — avoid fast chargers to protect your keyboard's longevity. (Single-mode wired version ships without battery.)
Dual RGB Light Strip · Elevate Your Desk Aesthetic
Dual independently adjustable RGB side light strips with a raised transition design add depth and dimension to your setup — no longer dull or monotonous.

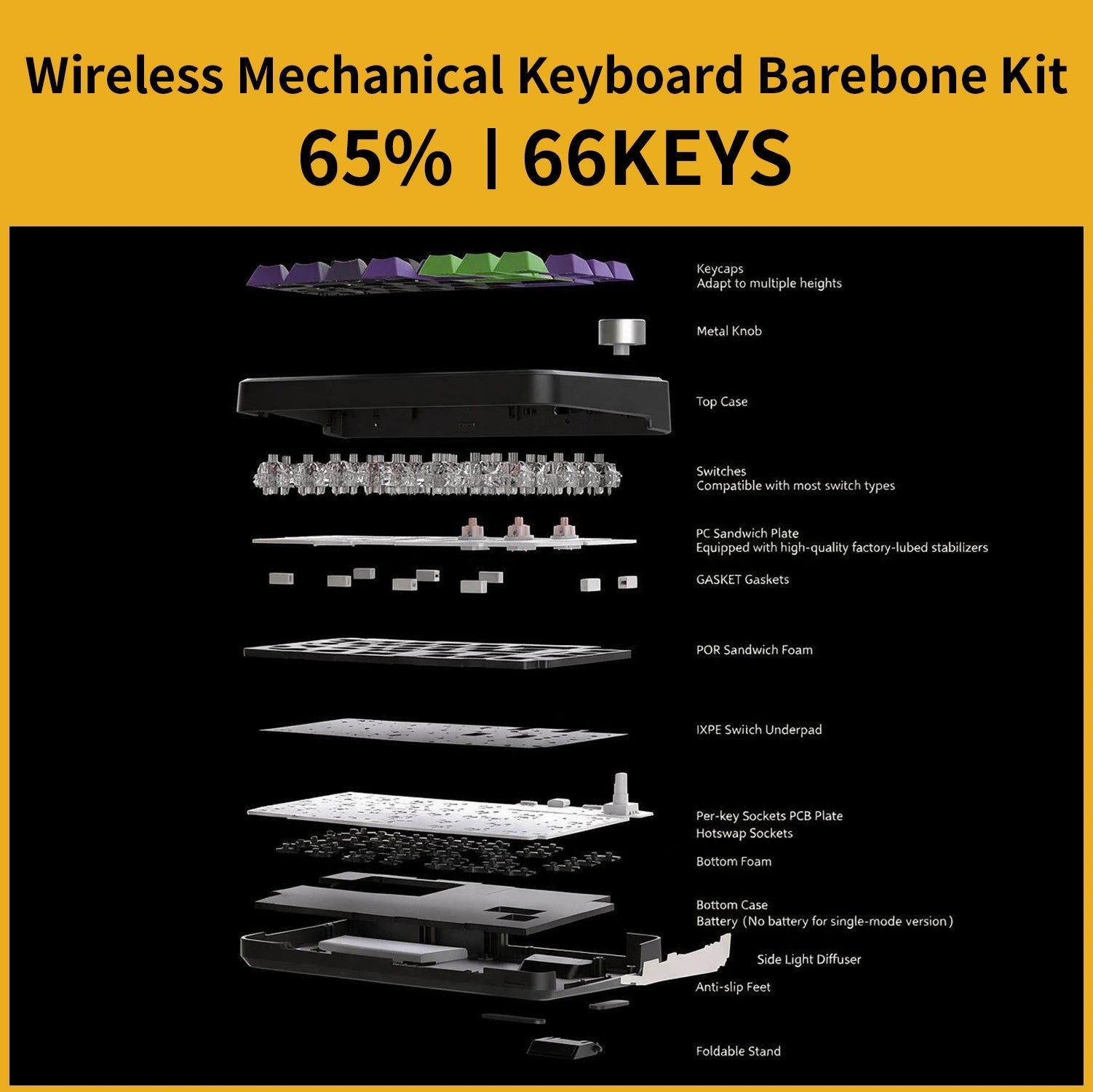

What's Inside
- PCB Board — single-key slotting, full-key hot-swappable switch sockets
- Sound Dampening Foam — four-layer acoustic foam for enhanced keystroke sound
- Satellite Switch Stabilizers — precision structure, smooth operation, excellent tactile sound
- Folding Feet — dual-layer feet with integrated wireless receiver storage
- Multimedia Knob — audio control and lighting effect switching
- Side Light Diffuser — even light diffusion for immersive ambiance
Specifications
- Layout: 66 Keys + Multimedia Knob
- Dimensions: approx. 333×122×29mm
- Structure: Gasket floating plate
- Plate: PC Sandwich Plate (soft & flexible)
- PCB: Full-key hot-swap, South-facing RGB LEDs
- Battery: 3750mAh lithium
- Charging: DC 5V/1A
- Stabilizers: Factory pre-lubed satellite stabilizers
- Included: Shaft puller & keycap puller
You may also like
Recently viewed
Commonly Asked Questions
The barebone kit includes the PCB board with full-key hot-swap sockets, four-layer sound dampening foam (POR sandwich foam, IXPE switch underpad, and bottom foam), factory pre-lubed satellite stabilizers, a multimedia knob, dual RGB side light strips, folding feet with wireless receiver storage, a shaft puller, and a keycap puller. Switches and keycaps are not included and must be purchased separately.
Yes — this keyboard supports Tri-Mode connectivity: 2.4GHz wireless, Bluetooth, and wired USB. The folding feet include built-in storage for the wireless receiver. Note: the single-mode wired version ships without a battery.
The PCB features full-key hot-swap sockets compatible with most MX-style switches (3-pin and 5-pin). You can swap switches at any time without soldering, making it easy to customize your typing feel.
The gasket floating plate structure uses silicone gaskets to isolate the PC sandwich plate from the case, absorbing vibration and reducing harshness. Combined with four layers of acoustic foam, this delivers a soft, deep 'thock' sound profile that is highly sought after in the custom keyboard community.
The keyboard is equipped with a 3750mAh lithium battery that supports use while charging. Charge via the USB port at DC 5V/1A using a standard computer USB port. Avoid fast chargers to protect battery longevity.
The south-facing per-key RGB LEDs and dual side light strips are controlled via keyboard shortcuts: Fn + Space to toggle the backlight on/off, Fn + \ to cycle through lighting effects, and Fn + ] to change the backlight color. Both the per-key LEDs and side strips are independently adjustable.
